ResMed Airsense 11 AutoSet CPAP

AirSense 11 AutoSet by ResMed is a premium-grade, auto-adjusting pressure device. The use of the device is highly indicated in the treatment of OSA (Obstructive Sleep Apnea) patients weighing 66lb+ (30kg+), and the treatment of female patients struggling with mild to moderate sleep apnea (AutoSet for Her model by ResMed). AirSense 11 AutoSet is a self-adjusting pressure device indicated for both home and hospital use.

What is included:

• AirSense 11 AutoSet main device
• HumidAir 11 standard tub
• Climate Line Air 11 heated tubing system or SlimLine tubing
• AC Adaptor (65W)
• Stylish travel bag

Available extra accessories/ spares include: Air tubing (ClimateLineAir 11 & SlimLine), HumidAir 11 Standard tub, end cap (which allows usage of the device without the humidifier), Air 11 standard filter, Air11 hypoallergenic filter, SD Card & SD Card cover.

The HumidAir 11 Standard tub is the only water tub used with the AirSense 11 pressure device. ClimateLineAir11 is the only available/ compatible heated tubing that can be used with the AirSense 11pressure device.

AirSense 11 Top Highlights

Each AirSense 11 device (AutoSet/ CPAP/Elite) comprises a wide range of features intended to help delivering the most comfortable therapy. There are also several tools available that help patients start their therapy with great ease and help them keep track of their therapy data (such as via MyAir App).

• Extremely easy-to-use touchscreen/ navigation allows for a simplified use & operation
• Modern, sleek & stylish design that blends nicely in any environment
• Turn therapy On/Off with the push of a single button
• Direct access to ResMed MyAir app- the online app and program that uses patient data from your machine to help you track last night’s sleep, offer you custom tailored tips/ advice and the encouragement needed to keep up with therapy
• MyAir includes Personal Therapy Assistant function- where you can get guiding on how to set up your equipment, troubleshoot several issues & obtain better therapy compliance
• With Care Check-In you get assistance custom tailored to your exact needs and requirements
• Climate Control feature allows you to control your humidifier manually or automatically. Thanks to the integrated humidifier, the device is more compact and easier to use, providing you with the optimum humid air during therapy.
• AutoRamp feature- helps you fall asleep on a more gentle pressure. At the start of the therapy, when AutoRamp is ON, the device will deliver a lower pressure setting to help you accommodate to therapy, and fall asleep easier. The device will automatically increase pressure flow to reach prescribed levels by the end of Ramp time.
• EPR- Expiratory Pressure Relief- helps maintaining regular airflow pressure during the inhalation phase. EPR reduces the pressure upon exhalation to make it easier while exhaling. Thus, you do not have to struggle exhaling against a strong pressure.

AirSense 11 Simple. Intuitive. Effective.

All smart and intuitive components and features work together in perfect harmony to provide you with a comfortable experience while getting the therapy that you require. How it works:

• The device pushes the air through the tubing system and into the mask
• The mask will allow the pressurized air to enter the airways. Thus, pressurized air maintains the airways open to prevent apnea events
• The Humidifier will add moisture to the air that you breathe. Moist air helps avoiding irritations such as throat irritations, chapped lips, nasal irritations, dryness and so on.
• The power supply unit helps providing continuous power to the device
• Powerful filters help preventing contaminants, allergens and dust from entering the machine
• With the smart MyAir App you get all the guidance that you need from setting up your machine, to how to use it correctly and up to tracking carefully and in a detailed manner all the therapy data that you need

AirSense 11 is an auto-adjusting device that is capable of adapting to your needs on a breath-by-breath basis. The machine can change airflow pressure following in a natural way your own breathing pattern. AirSense 11 is also available in a gender-specific therapy mode with a special algorithm- AutoSet for Her.

AirSense 11 AutoSet – About the device- description & function

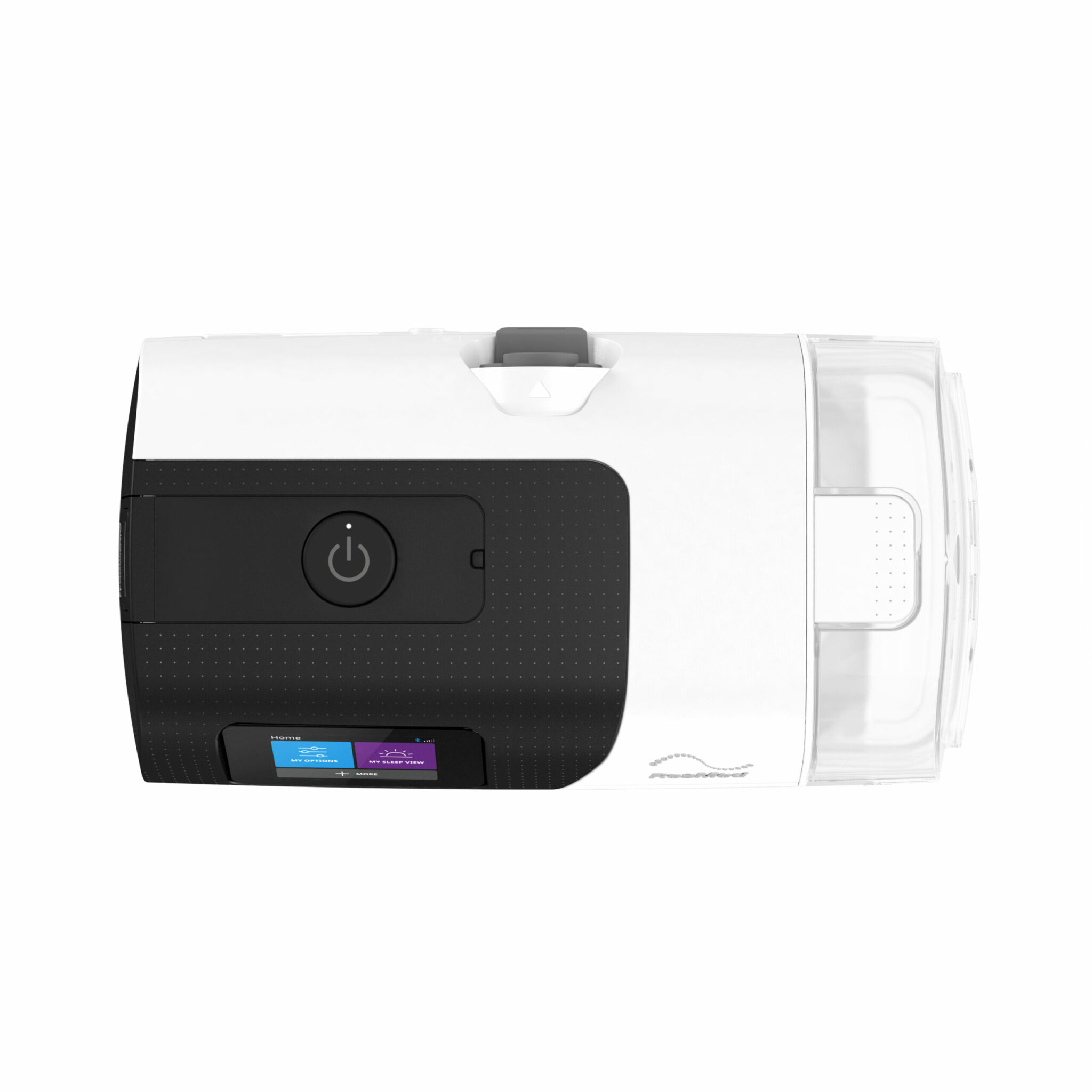

Start therapy/ Standby Button- you should press the button in order to start/stop therapy. The LED indicator is green during the standby mode, white during therapy.

Display touch screen- will help you navigate through functions and will display information pertaining to the operating status of the device

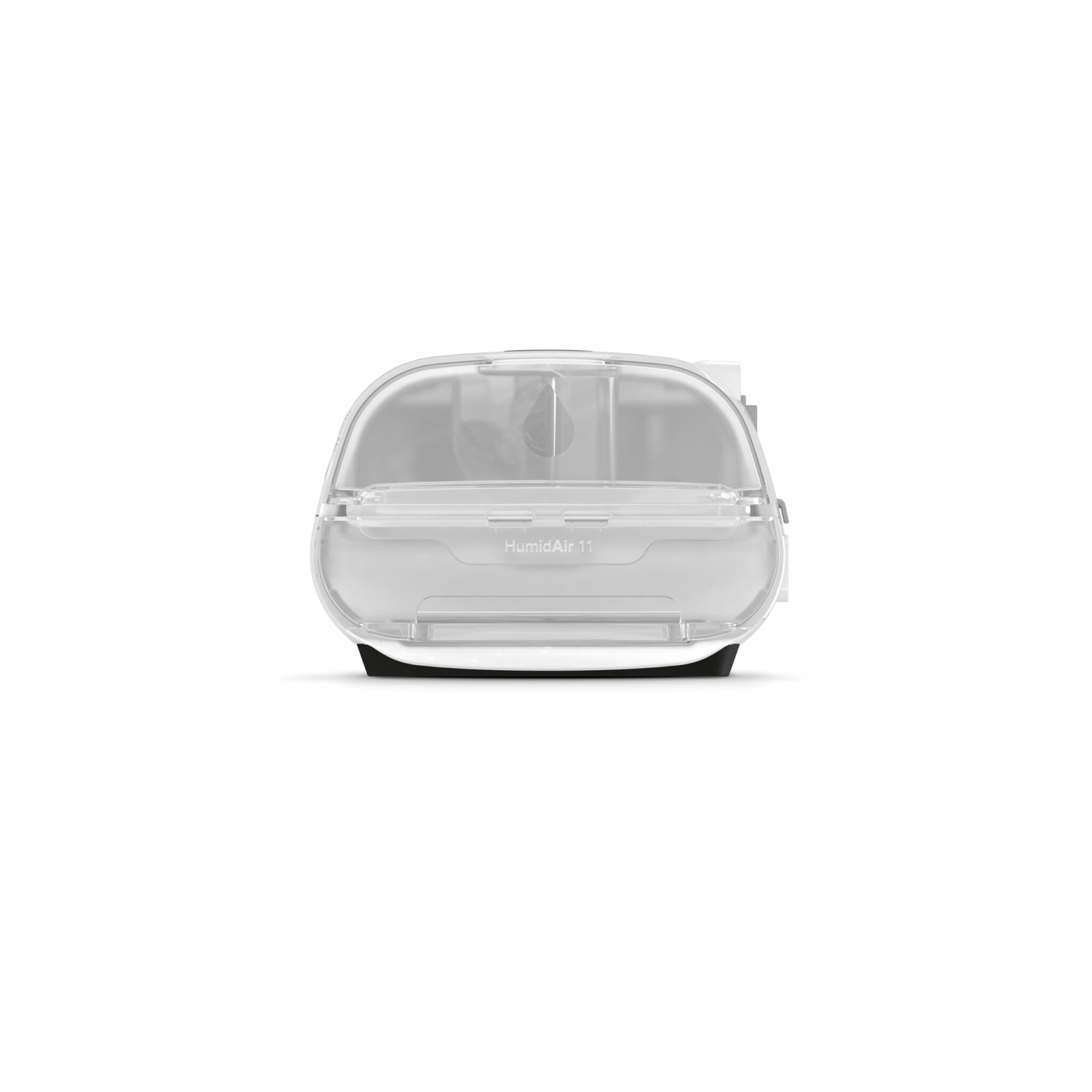

HumidAir 11 tub- this is the water tub that helps providing heated humidification

The device label- displays all important information about your device

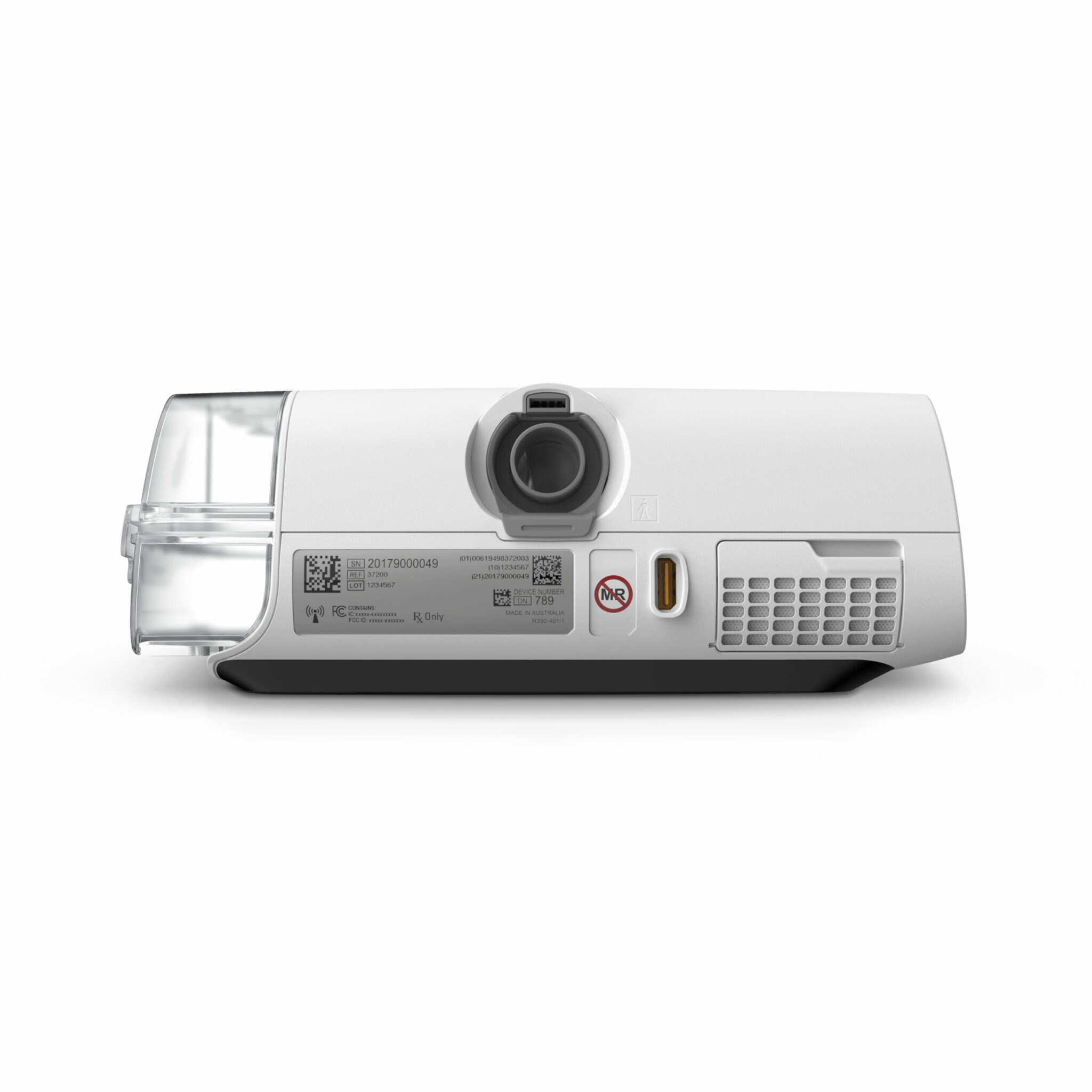

Outlet connector- connects the air tubing to the device

Power inlet- connects the power cord

Air inlet filter cover- contains the air filter

SD Card cover- this is a removable cover that offers protection to the SD card slot. The LED button is blue whenever data is being transferred to the main SD card

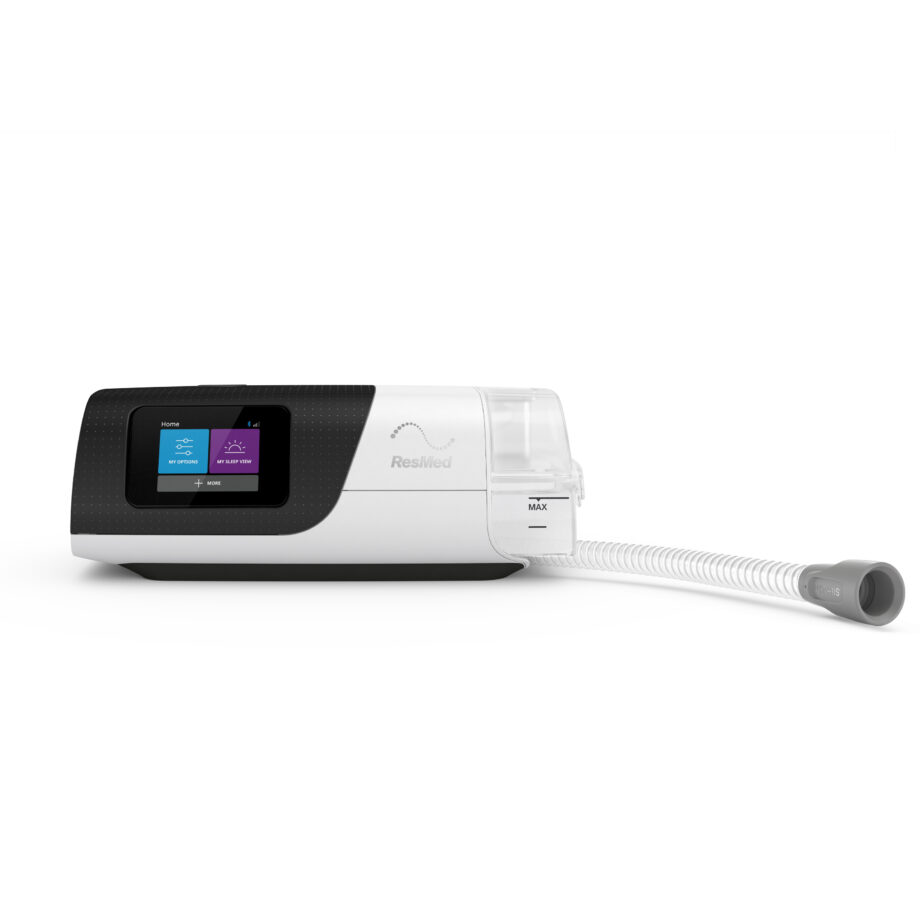

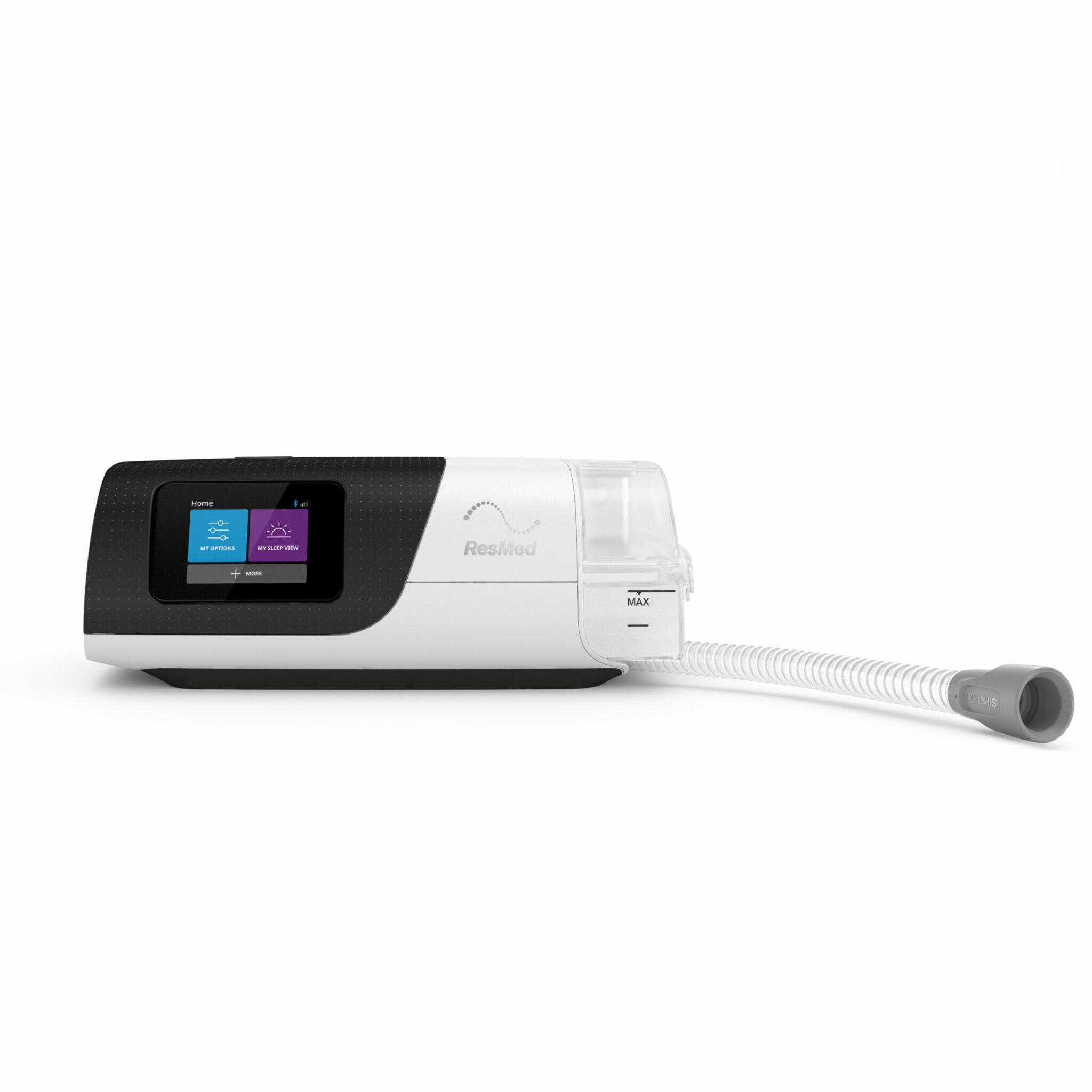

SlimLine tubing- this is the non-heated air tubing

ClimateLineAir 11 tubing- this us the heated air tubing

Please note that when the therapy/Start button flashes white, it signals a system error. For more information, you should check the Troubleshooting section in your manual. Always use the AirSense 11 AutoSet device exactly as directed by your healthcare provider or physician.

AirSense 11 AutoSet warning & cautions:

• You should always place the device on a flat surface, lower than your head. This will help preventing the air tubing and mask from filling with water.
• Never overfill the humidifier tub because water may enter the air tubing or the device
• Always use ResMed parts and accessories with the device (e.g. power supplies or air filters), masks and other accessories
• Never block the air inlet or air tubing of the device while operating. This may lead to overheating of the main device
• Always maintain the area around the device dry and clean. Make sure that air is not blocked from entering
• With AirSense 11 AutoSet you should always use vented masks recommended by ResMed

AirSense 11 AutoSet- How to set up the device

First, you need to place the unit on a level surface that is stable (e.g. On your nightstand)

Next, connect the power cord into the power inlet (you can find this at the rear of the device).

Connect the air tubing to the outlet connector at the rear of the device

Fill the humidifier tub with water up to the maximum sign. Always use distilled water for the humidifier tub. Before adding water, you need to remove the tub from the device. The maximum capacity of the tub is 380mL. Close the humidifier tub and insert it into its place.

Connect the air tubing to the mask. For detailed information, check the assembly steps of the mask.

How to navigate the touchscreen of the AirSense 11 AutoSet:

Home Screen- helps you return to the home screen of the device at any time.

Humidifier fault- this signals a fault in the humidifier. Oxygen therapy will run without heating.

Humidifier warning- the water in the humidifier tub is cooling

Bluetooth connected- the sign shows that Bluetooth is successfully connected via Bluetooth technology

Cellular sign strength- shows the strength of the cellular connectivity on your device

No cellular connection- whenever cellular coverage is not available

Airplane mode- indicates that the device is in airplane mode

Initial Setup of the device

Starting from the Welcome screen, you should follow the next prompts. From the Home screen, it is possible to access the following menus:

• My Options- you can easily view and adjust therapy settings, such as adjusting Ramp Time
• My Sleep View- helps tracking sleep data- for example, checking last night’s usage hours or the mask status
• More: you can access other features such as switching to Airplane Mode or Run Mask Fit feature

When using the touch screen, there are two methods you can use to navigate: Swipe or Touch.

Other features that you can personalize:

• Ramp Time in My Options: ramp time is the period of time during which pressure increases gently – from low and up to prescribed levels. Ramp time can be set from 5 to 45 minutes (in 5 minute increments) or set to Auto.
• Pressure Relief function- when enabled, EPR will help you exhale without struggling against a high pressure. EPR is a setting that helps patients enjoy better therapy compliance.
• SmartStart function- When you breathe into your mask, therapy will start instantly whenever SmartStart is enabled
• Smart Stop- therapy stops automatically within a few seconds after you remove your mask.
• MaskFit function in More: with this function you will be able to identify any air leaks around the mask.

Connecting to MyAir – track the progress of your therapy/ know the health data

MyAir is an application that will offer you guidance on how to set up your device. You will get access to setup videos, Test Drive related help, mask fitting tutorials and even the possibility to track your sleep and overall therapy progress. Please keep in mind that MyAir app is not required in order to operate the AirSense 11 AutoSet device.

Before pairing your AirSense 11 to a smartphone, make sure to download the latest version of the app. Now you can set up the application, by going to the MORE menu:

• Launch MyAir and tap continue
• Follow closely the prompts and connect via Bluetooth
• Next, tap Done

How to Start/ Stop therapy with AirSense 11 AutoSet

In order to start the therapy session, fit your mask and next press the Start therapy/ Standby button on the unit. If SmartStart is enabled, all you need to do is breathe into the mask. Now, therapy will start and the treatment screen is enabled. During therapy, you will notice a dynamic pulse wave being displayed on the screen.

In order to Stop therapy, remove your mask. Next, press the Start therapy/ Standby button. Alternatively, if SmartStop is enabled, you just need to wait a few seconds after removing your mask and the unit will stop.

ClimateLineAir 11: More comfortable breathing with Climate Control

ClimateLineAir 11 is a heated tube that will help delivering air to your mask. When you use the tube with the humidifier tub, the tubing allows you use Climate Control. With Climate Control, you can enjoy breathing air with a constant, comfortable temperature and humidity level.

• Enjoy comfortable humidity levels to avoid a dry nose/ dry throat
• Can be set to Manual or Auto
• Climate Control is only available when HumidAir 11 tub + ClimateLineAir 11 are attached

For Climate Control, Auto is the default setting. This feature helps delivering comfortable levels of humidity and temperature so that you do not have to change anything. When enabling Auto setting:

• The tube temperature is set to 27C (80F).
• The humidifier output is adjusted in order to maintain a constant and comfortable humidity level. – 85% relative humidity
• Get protection against rainout- the development of water droplets within mask & tubing

Climate Control can be set manually. This will offer you more flexibility and control over your therapy. By using the manual setting, you can adjust temperature and humidity levels to find the best setting for you. Both humidity and temperature levels can be set individually for even more flexibility.

• Turn up humidity levels if you struggle with a dry nose/ dry mouth
• Turn down the humidity levels if you are receiving too much moisture into your mask
• 1 is the lowest humidity setting, while 8 is the highest. You can turn off humidity levels (at Off setting).

AirSense 11 AutoSet Cleaning recommendations

Daily cleaning recommendations:

• Make sure to empty the humidifier tub and also wipe it using a clean cloth.
• Refill the tub using distilled water

Weekly cleaning recommendations:

• Prepare warm water with regular dishwasher liquid. Wash the humidifier tub, outlet connector and air tubing in thissolution. Ensure to wash the components in water that does not exceed 149F (65C).
• Rinse well each component
• Allow them to dry away from direct sunlight
• Wipe the exterior of the main unit with a clean cloth

Never wash the heated air tubing in a dishwasher

The air filter is not washable/ reusable.

Troubleshooting AirSense 11 AutoSet

Air leaks around the mask ensure your mask is fitted in a correct manner. Check the fitting instructions in your guide or check out the Mask Fit tutorial in MyAir App.

Struggling with dry nose/ blocked nose Increase the humidity levels for more comfort

Water droplets on the nose, in the air tube & mask Humidity levels may be set too high- reduce humidity levels / tube temperature may be too low- increase the Tube temperature

Mouth feels uncomfortable the air may be escaping through the mouth – a chin strap may help to keep your mouth in a closed position. Alternatively, a full face mask may represent a better option than a nasal mask.

The humidifier tube is leaking Check humidifier for any damage and reassemble correctly. If humidifier is cracked, contact your care provider for a replacement.

Therapy data not sent to the care provider/ prescription settings are not applied to device:

• Poor wireless coverage/ no wireless
• Device may be in Airplane Mode
• Data transfer is not enabled for your device

AirSense 11 AutoSet Technical Specifications:

• Operating pressure range – 4cmH2O to 20cmH2O
• Mode pressure ranges: AutoSet, AutoSet for Her mode: 4-20cmH2O
• Sound levels: Device + SlimLine and humidification 27dBA
• Dimensions: H X W X D – 5.45” X 10.21” X 3.72”
• Weight: device + standard humidifier tub- 40oz. (1130g)
• Water tank capacity- 380mL
• Time between each refill of the humidifier tub > 8 hours
• Recommended water type to use in humidifier: Distilled water
• Operating temperature: 100-240V
• Typical power consumption: 56.1W
• Operating humidity levels: 10 to 95% relative humidity, non-condensing
• Air Filters: Standard or Hypoallergenic
• Supplemental oxygen maximum flow: 15L/min
• ResMed acknowledges that the machine meets FDA requirements for all air travel phases.
  Warranty:
• Device, power supply unit- 5 years
• Standard humidifier tub- 6 months
• Air Tubing- 6 months

ClimateLimeAir:

• Temperature range: 60 to 86F(16 to 30C)
• Max recommended pressure: 30cmH2O
• Material: flexible plastic + electrical components
• Inner diameter: 15mm (0,6”)
• Length: 6’6” (2.0m)

SlimLine/Standard tubing:

• Temperature range: 60 to 86F (16 to 30C- Max recommended pressure: 30cmH2O
• Material: flexible plastic
• Inner diameter: Slim Lime- 0.6” (15mm) / Standard: 0.74” (19mm)
• Length: SlimLine: 6’ (1.8m) / Standard: 6’6” (2.0m)

Recommended compatible masks with ResMed AirSense 11:

• Full Face masks: AirFit F30i / AirFit F30/ AirFit F20/ AirTuoch F20
• Nasal Masks: AirFit N30i/ AirFit N30/ AirFit N20/ AirTouch N20
• Nasal Pillow Masks: AirFit P30i / AirFit P10

For vice guided video setup instructions, check out the Personal Therapy Assistant via MyAir app.
